New Zealand's Trusted Water Solutions
PHILMAC METRIC TRANSITION FITTINGS
Philmac, the global leader in the design and manufacture of plastic compression fittings, has developed a unique range of mechanical compression fittings that provide the ultimate in pipe connection flexibility. Without modification the same fitting connects to a variety of materials including PVC, copper, galvanized iron, ABS, lead, stainless steel, steel, polyethylene and PEX. Each size fitting covers a range of pipe diameters providing a ‘Universal’ solution. Providing a seal on out-of-round and pitted pipes is another aspect of the ‘Universal’ solution.
UNIVERSAL DESIGN: Through its wide tolerance, the Philmac UTC® is designed to accommodate a range of different diameters on most pipe material (including PVC, copper, galvanized iron, ABS, lead, stainless steel, steel, polyethylene and PEX).
LARGE SEAL: The large seal in Philmac UTC® is particularly suited to Out-of-Round and Pitted pipes Slide & Tighten™ technology: The Philmac UTC® incorporates all the benefits of Philmac’s Slide & Tighten™ technology. Simply witness mark the pipe against the flange on the fitting, and then insert the pipe to the correct depth. The nut can then be tightened using a wrench. The UTC® is fully installed when the nut can no longer be tightened with reasonable force.
No special tools are required and the Philmac UTC® is supplied ready to use.
EASY DISASSEMBLY: The design of the UTC® means that once the nut is backed off, the pipe can easily be removed from the fitting
DYNAMIC SEALING METHOD: The mechanical advantage of the nut thread compresses the seal into position, eliminating resistance when inserting the pipe into the fitting, so there is no risk of seal distortion or displacement.
NO LOOSE COMPONENTS: The Philmac UTC® is fully integrated with no loose components. There is no need for individual assembly of a split ring, sealing ring or nut. All that is required is the insertion of the pipe and tightening of the nut.
RATED TO 12.5 BAR (180PSI): The Philmac UTC® is pressure rated to 12.5 bar (180psi) at 23 °C (73 °F) to meet the needs of high pressure systems.
50 YEAR + DESIGN LIFE: Built to withstand the toughest conditions to ensure longevity and durability, Philmac UTC® has a 50 year+ design life at 23 °C (73 °F).
Philmac Universal Transition Coupling Brochure
Introduction to Transition Coupling
Transition fittings technician information
Universal Transition Coupling (UTC) Installation Video
How to join Poly Pressure Pipe to PVC Pressure Pipe using UTC Fitting
How to install a Philmac 3G Poly to Copper Fitting

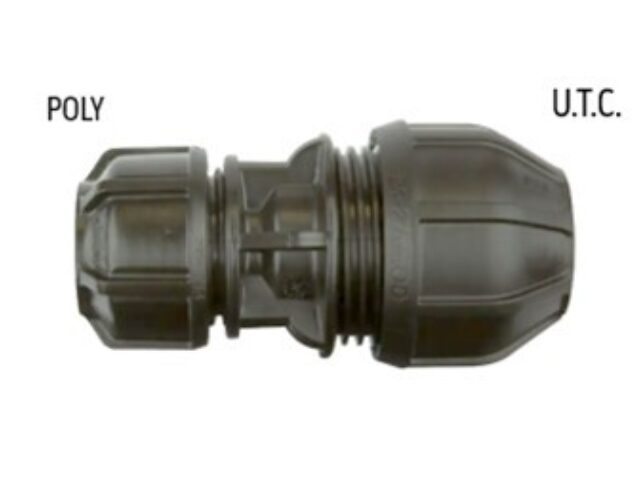

TRANSITION COUPLING
| Code | Description |
|---|---|
| PHTC20.15.21 | Philmac Transition Coupling 20 x 15-21 mm |
| PHTC20.21.27 | Philmac Transition Coupling 20 x 21-27 mm |
| PHTC25.15.21 | Philmac Transition Coupling 25 X 15-21 mm |
| PHTC25.21.27 | Philmac Transition Coupling 25 X 21-27 mm |
| PHTC25.27.34 | Philmac Transition Coupling 25 x 27-34 mm |
| PHTC32.27.34 | Philmac Transition Coupling 32 x 27-34 mm |
| PHTC32.34.39 | Philmac Transition Coupling 32 x 34-39 mm |
| PHTC32.39.43 | Philmac Transition Coupling 32 x 39-43 mm |
| PHTC50.47.49 | Philmac Transition Coupling 50 x 47-49 mm |
| PHTC63.47.49 | Philmac Transition Coupling 63 x 47-49 mm |
| PHTC63.59.61 | Philmac Transition Coupling 63 x 59-61 mm |

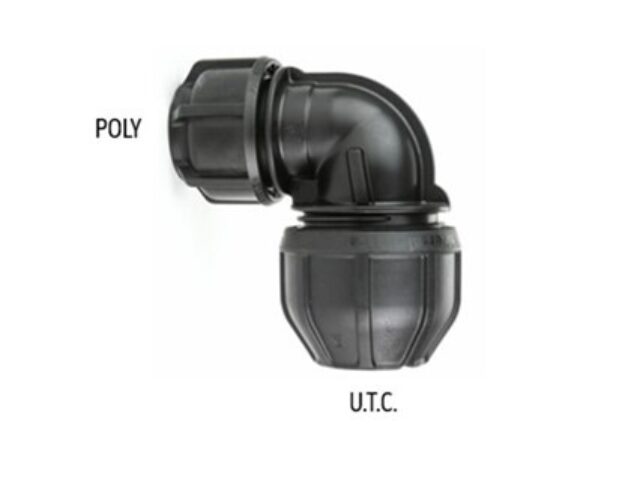

TRANSITION ELBOW
| Code | Decription |
|---|---|
| PHTE25.15.21 | Philmac Transition Elbow 25 x 15-21 mm |
| PHTE25.21.27 | Philmac Transition Elbow 25 x 21-27 mm |
| PHTE25.27.34 | Philmac Transition Elbow 25 x 27-34 mm |
| PHTE32.21.27 | Philmac Transition Elbow 32 X 21-27 mm |
| PHTE32.27.34 | Philmac Transition Elbow 32 x 27-34 mm |

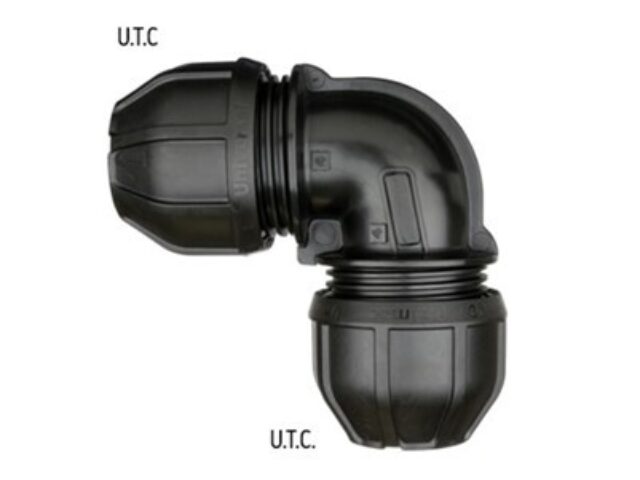

TRANSITION DOUBLE ENDED ELBOW
| Code | Description |
|---|---|
| PHTDEL15.21 | Philmac Transition double elbow 15-21 mm |
| PHTDEL21.27 | Philmac Transition double elbow 21-27 mm |

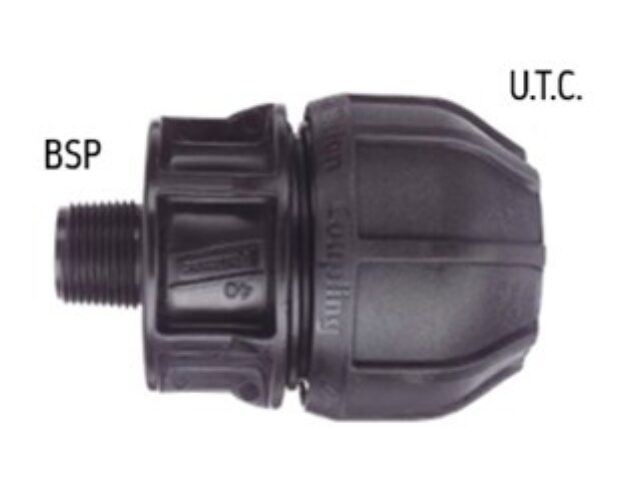

TRANSITION MALE CONNECTOR
| Code | Description |
|---|---|
| PHTMC20.15.21 | Philmac Trans male connector 15-21mm x ¾" |
| PHTMC20.21.27 | Philmac Trans male connector 21-27mm x ¾" |
| PHTMC20.27.34 | Philmac Trans male connector 27-34mm x ¾" |

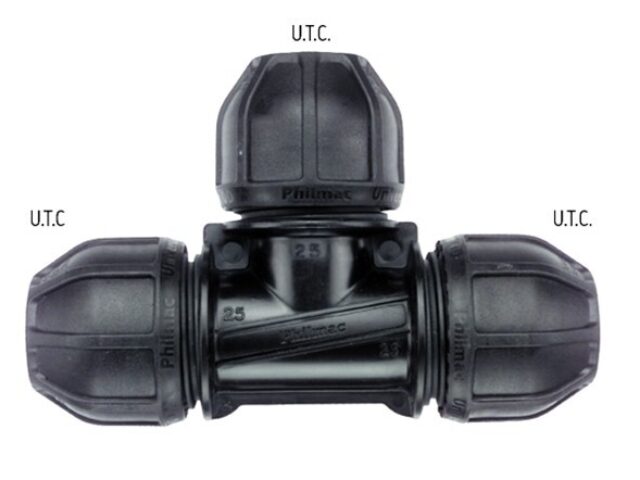

TRANSITION TEE
| Code | Description |
|---|---|
| PHTT15.21 | Philmac Transition Tee 15-21 mm |

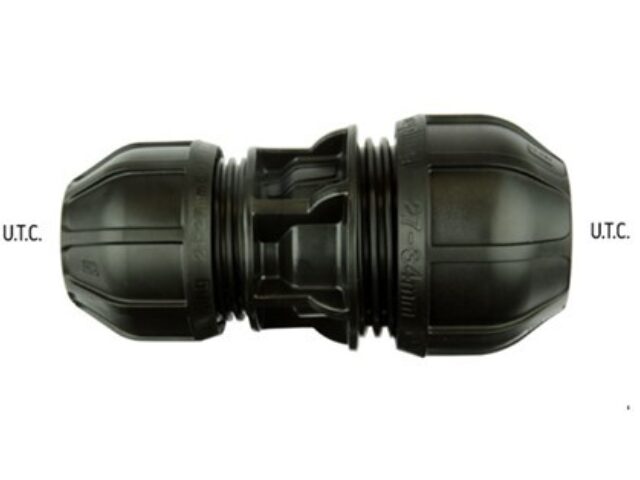

TRANSITION REDUCING DOUBLE ENDED
| Code | Description |
|---|---|
| PHTRD21.15 | Philmac Trans reduce dbl end 21-27 x 15-21mm |
| PHTRD27.21 | Philmac Trans reduce dbl end 27-34 x 21-27mm |
| PHTRD27.15 | Philmac Trans reduce dbl end 27-34 x 15-21mm |
| PHTRD39.27 | Philmac Trans reduce dbl end 39-43 x 27-34mm |

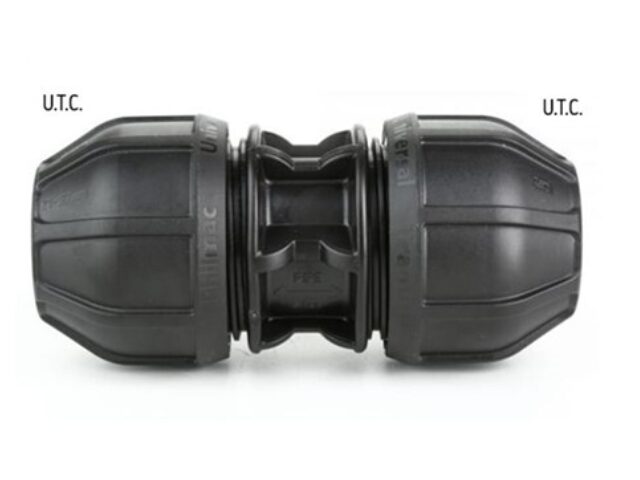

TRANSITIONAL DOUBLE ENDED
| Code | Description |
|---|---|
| PHTDE15.21 | Philmac Trans coupling double end 15-21 mm |
| PHTDE21.27 | Philmac Trans coupling double end 21-27 mm |
| PHTDE27.34 | Philmac Trans coupling double end 27-34 mm |
| PHTDE39.43 | Philmac Trans coupling double end 39-43 mm |
| PHTDE34.39 | Philmac Trans coupling double end 34-39 mm |
| PHTDE47.49 | Philmac Trans coupling double end 47-49 mm |
| PHTDE59.61 | Philmac Trans coupling double end 59-61 mm |

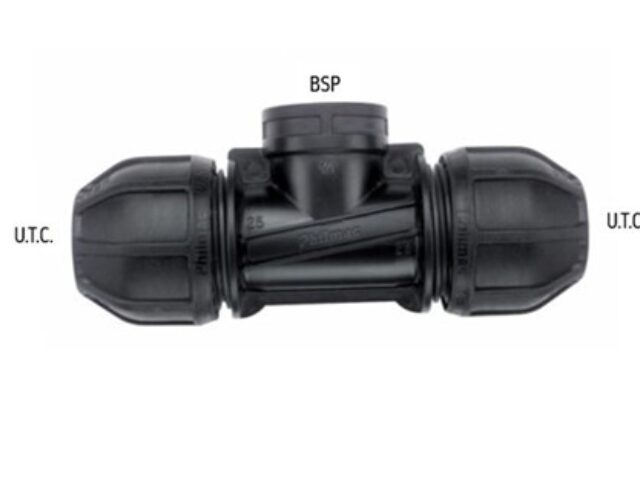

TRANSITIONAL TEE FEMALE THREAD
| Code | Description |
|---|---|
| PHTTF15.20 | Philmac Transition tee female thread 15-21 x ¾" |
| PHTTF15.25 | Philmac Transition tee female thread 15-21 x 1" |
| PHTTF21.20 | Philmac Transition tee female thread 21-27 x ¾" |
| PHTTF21.25 | Philmac Transition tee female thread 21-27 x 1" |
