PHILMAC BSP THREADED FITTINGS

Philmac threaded fittings are manufactured from high performance, UV resistant polypropylene material that prevents moisture absorption and sustains product dimensions. The chemical and corrosion resistance provides reliable, long life connections suitable for diverse applications and is a cost effective alternative to metal fittings.

The precision BSP tapered threads have been engineered to maximise sealing performance and the hexagonal body makes them easy to install.

Philmac threaded fittings (excluding risers) are suitable for working pressures up to PN16 (1600kPa, 235psi) for sizes up to 2" and up to PN10 (1000kPa, 145psi) for sizes up to 4". The fittings are manufactured to ISO9001 quality endorsed standards and include a comprehensive range of plugs, bushes, nipples, sockets, tees, elbows and caps.

Philmac threaded fittings and tank outlets hold AS/NZS 4020 approval and therefore can be used in potable water applications.

For technical information click here

REDUCING BUSHES

Code Description
MRB1508 15 x 08mm * not philmac
PHRB2015 20 x 15mm
PHRB2515 25 x 15mm
PHRB2520 25 x 20mm
PHRB3215 32 x 15mm
PHRB3220 32 x 20mm
PHRB3225 32 x 25mm
PHRB4015 40 x 15mm
PHRB4020 40 x 20mm
PHRB4025 40 x 25mm
PHRB4032 40 x 32mm
PHRB5015 50 x 15mm
PHRB5020 50 x 20mm
PHRB5025 50 x 25mm
PHRB5032 50 x 32mm
PHRB5040 50 x 40mm
PRB6550 65 x 50mm * Not Philmac
PHRB8050 80 x 50mm
PHRB8065 80 x 65mm
PHRB10050 100 x 50mm
PHRB10080 100 x 80mm

HEX NIPPLE

Code Description
PHHN15 15mm
PHHN20 20mm
PHHN25 25mm
PHHN32 32mm
PHHN40 40mm
PHHN50 50mm
PHHN65 65mm
PHHN80 80mm
PHHN100 100mm

HEX SOCKET

Code Description
PHHS15 15mm
PHHS20 20mm
PHHS25 25mm
PHHS32 32mm
PHHS40 40mm
PHHS50 50mm
PHS65 65mm * Not Philmac
PHS80 65mm * Not Philmac

REDUCING HEX NIPPLES

Code Description
PHRN2015 20 X 15mm
PHRN2515 25 x 15mm
PHRN2520 25 x 20mm
PHRN3215 32 x 15mm
PHRN3220 32 x 20mm
PHRN3225 32 x 25mm
PHRN4015 40 x 15mm
PHRN4020 40 x 20mm
PHRN4025 40 x 25mm
PHRN4032 40 x 32mm
PHRN5015 50 x 15mm
PHRN5020 50 x 20mm
PHRN5025 50 x 25mm
PHRN5032 50 x 32mm
PHRN5040 50 x 40mm
PRN6550 65 x 50mm * Not Philmac
PHRN8050 65 x 50mm
PHRN8065 80 x 65mm
PHRN10080 100 x 80mm

REDUCING HEX SOCKETS

Code Description
PHRS2015 20 X 15mm
PHRS2515 25 x 15mm
PHRS2520 25 x 20mm
PHRS3220 32 x 20mm
PHRS3225 32 x 25mm
PHRS4020 40 x 20mm
PHRS4025 40 x 25mm
PHRS4032 40 x 32mm
PHRS5015 50 x 15mm
PHRS5020 50 x 20mm
PHRS5025 50 x 25mm
PHRS5032 50 x 32mm
PHRS5040 50 x 40mm

HEX CAPS

Code Description
PHHC15 15mm
PHHC20 20mm
PHHC25 25mm
PHHC32 32mm
PHHC40 40mm
PHHC50 50mm

HEX PLUG

Code Description
PHHP15 15mm
PHHP20 20m
PHHP25 25mm
PHHP32 32mm
PHHP40 40m
PHHP50 50mm
PHP65 65mm *Not Philmac
PHP80 80mm *Not Philmac
PHP100 100mm

FEMALE THREADED ELBOWS

Code Description
PHTFE15 15mm
PHTFE20 20mm
PHTFE25 25mm
PHTFE32 32mm
PHTFE40 40mm
PHTFE50 50mm
PTFE65 65mm *Not Philmac
PTFE80 80mm *Not Philmac

MALE/FEMALE THREADED ELBOWS

Code Description
PHTMFE15 15mm
PHTMFE20 20mm
PHTMFE25 25mm
PHTMFE32 32mm
PHTMFE40 40mm
PHTMFE50 50mm

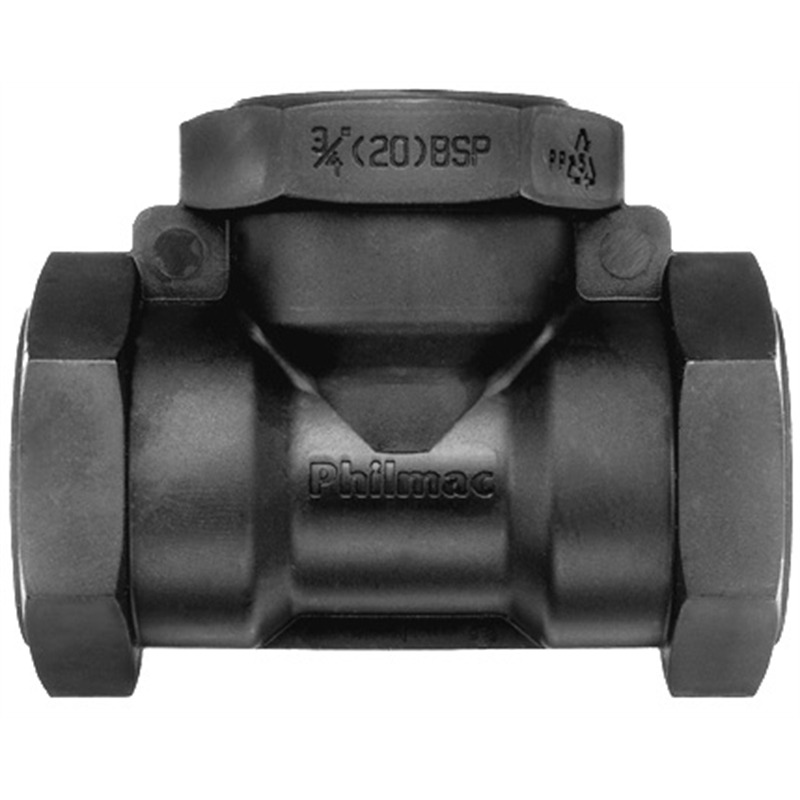

FEMALE THREADED TEES

Code Desription
PHTFT15 15mm
PHTFT20 20mm
PHTFT25 25mm
PHTFT32 32mm
PHTFT40 40mm
PHTFT50 50mm
PTFT65 65mm *Not Philmac
PTFT80 80mm *Not Philmac

NUT & TAIL

Code Description
PHNT20 20mm
PHNT25 25mm
PHNT32 32mm
PHNT40 40mm
PHNT50 50mm

REDUCING NUT & TAIL

Code Description
PHRN2015 ¾" BSP x 15mm tail
PHRN2515 1" BSP x 15mm tail
PHRN2520 1" BSP x 20mm tail

MALE THREADED HOSE TAIL (NYLON)

Code Description
PHMHT20 20mm
PHMHT25 25mm
PHMHT32 32mm
PHMHT40 40mm
PHMHT50 50mm

REDUCING MALE THREADED HOSE TAIL (NYLON)

Code Description
PHRMHT2025 ¾" BSP x 25mm tail
PHRMHT2532 1" BSP x 32mm tail
PHRMHT3225 1¼" BSP x 25mm tail
