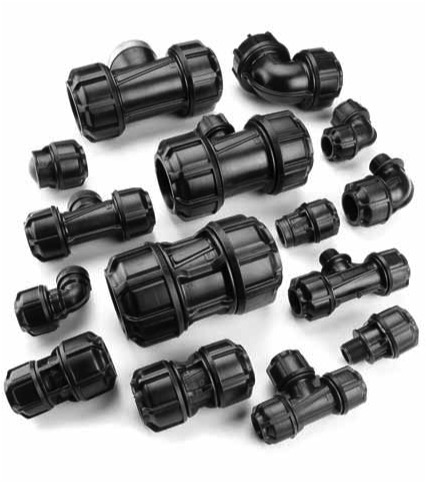

PHILMAC 3G METRIC COMPRESSION FITTINGS

Simply Slide and Tighten™ for a reliable connection you can trust

Philmac’s range of Australian made metric compression fittings are the solution for the perfect connection every time thanks to Philmac’s unique Slide and Tighten™ technology. Each fitting is pre-assembled and ready to use so there’s no need to disassemble the fittings or prepare the pipe prior to use. Simply cut the PE pipe square and slide it into the fitting until you feel the first point of resistance and then tighten the nut to the flange on the body of the fitting.

With Philmac’s metric compression fittings, just slide and tighten and the job’s done!


RATED TO 1600 KPA: 3G Metric™ is pressure rated to 1600 kPa (PN16) to meet the needs of high pressure systems.

For all MDPE pipe - 6,9 & 12 bar Complies with ISO 3458, 3459, 3503, 14236. BS 5114

Philmac 3G Metric Installation Video

How to join poly pressure pipe using Philmac 3G Metric Fitting

For Technical Manual Click Here

Installation Instructions

Brochure


STRAIGHT COUPLING

Code Description
PHSC20 20mm Philmac 3G straight coupling
PHSC25 25mm Philmac 3G straight coupling
PHSC32 32mm Philmac 3G straight coupling
PHSC40 40mm Philmac 3G straight coupling
PHSC50 50mm Philmac 3G straight coupling

SLIP COUPLING

Code Description
PHSJ20 20mm philmac 3G slip coupling
PHSJ25 25mm philmac 3G slip coupling
PHSJ32 32mm philmac 3G slip coupling
PHSJ40 40mm philmac 3G slip coupling
PHSJ50 50mm philmac 3G slip coupling

MALE COUPLING

Code Description
PHMC20 20mm x ½" Philmac3G male coupling
PHMC2020 20mm x ¾" Philmac 3G male coupling
PHMC2515 25mm x ½" Philmac3G male coupling
PHMC25 25mm x ¾" Philmac 3G male coupling
PHMC2525 25mm x 1" Philmac 3G male coupling
PHMC3220 32mm x ¾" Philmac 3G male coupling
PHMC32 32mm x 1" Philmac 3G male coupling
PHMC3220 32mm x ¾" Philmac 3G male coupling
PHMC3232 32mm x 1¼" Philmac 3G male coupling
PHMC3240 32mm x 1½" Philmac 3G male coupling
PHMC40 40mm x 1¼" Philmac 3G male coupling
PHMC4025 40mm x 1" Philmac 3G male coupling
PHMC4040 50mm x 1½" Philmac 3G male coupling
PHMC50 50mm x 1½" Philmac 3G male coupling
PHMC5050 50mm x 2" Philmac 3G male coupling
PHMC63 63mm x 2" Philmac 3G male coupling
PHMC6340 63mm x 1½" Philmac 3G male coupling
PHMC75 75mm x 2" Philmac 2G male coupling
PHMC7575 75mm x 3" Philmac 2G male coupling
PHMC90 90mm x 3" Philmac 2G male coupling
PHMC110 110mm x 4" Philmac 2G male coupling

FEMALE COUPLING

Code Description
PHFC20 20mm x ½" Philmac 3G female coupling
PHFC2020 20mm x ¾" Philmac 3G female coupling
PHFC25 25mm x ¾" Philmac 3G female coupling
PHFC2525 25mm x 1" Philmac 3G female coupling
PHFC32 32mm x 1" Philmac 3G female coupling
PHFC3232 32mm x ¼" Philmac 3G female coupling
PHFC40 40mm x 1¼" Philmac 3G female coupling
PHFC4040 40mm x 1½"Philmac 3G female coupling
PHFC50 50mm x 1½" Philmac 3G female coupling
PHFC5050 50mm x 2" Philmac 3G female coupling
PHFC63 63mm x 2" Philmac 3G female coupling
PHFC75 75mm x 2" Philmac 2G female coupling
PHFC90 90mm x 3" Philmac 2G female coupling
PHFC110 110mm x 4" Philmac 2G female coupling

ELBOWS

Code Description
PHEL20 20mm Philmac 3G elbow
PHEL25 25mm Philmac 3G elbow
PHEL32 32mm Philmac 3G elbow
PHEL40 40mm Philmac 3G elbow
PHEL50 50mm Philmac 3G elbow
PHEL63 63mm Philmac 3G elbow
PHEL75 75mm Philmac 3G elbow
PHEL90 90mm Philmac 3G elbow
PHEL110 110mm Philmac 3G elbow

MALE ELBOWS

Code Description
PHME20 20mm x ½" Philmac 3G male elbow
PHME25 25mm x ¾" Philmac 3G male elbow
PHME32 32mm x 1" Philmac 3Gmale elbow

FEMALE ELBOWS

Code Description
PHFE20 20mm x ½" Philmac 3G female elbow
PHFE2020 20mm x ¾" Philmac 3G female elbow
PHFE2515 25mm x ½" Philmac 3G female elbow
PHFE25 25mm x ¾" Philmac 3G female elbow
PHFE2525 25mm x 1" Philmac 3G female elbow
PHFE32 32mm x 1" Philmac 3G female elbow
PHFE3232 32mm x 1¼" Philmac 3G female elbow
PHFE40 40mm x 1¼"Philmac 3G female elbow
PHFE4040 40mm x 11½"Philmac 3G female elbow
PHFE50 50mm x 1½" Philmac 3G female elbow
PHFE5050 50mm x 2" Philmac 3G female elbow
PHFE63 63mm x 2" Philmac 3G female elbow
PHFE75 75mm x 2" Philmac 2G female elbow
PHFE90 90mm x 3" Philmac 2G female elbow
PHFE110 110mm x 4" Philmac 2G female tee

TEE

Code Description
PHET20 20mm Philmac 3G equal tee
PHET25 25mm Philmac 3G equal tee
PHET32 32mm Philmac 3G equal tee
PHET40 40mm Philmac 3G equal tee
PHET50 50mm Philmac 3G equal tee
PHET63 63mm Philmac 3G equal tee
PHET75 75mm Philmac 2G equal tee
PHET90 90mm Philmac 2G equal tee
PHET110 110mm Philmac 2G equal tee

FEMAL TEE

Code Description
PHFT2020 20mm x ¾" Philmac 3G female tee
PHFT20 20mm x ½" Philmac 3G female tee
PHFT2515 25mm x ½" Philmac 3G female tee
